A turret punch or turret press is a type of punch press used for metal forming by punching. Punching, and press work in general, is a process well suited to mass production.
Turrent Punching Machine Specifications
| Machine Specifications | Details |
|---|---|

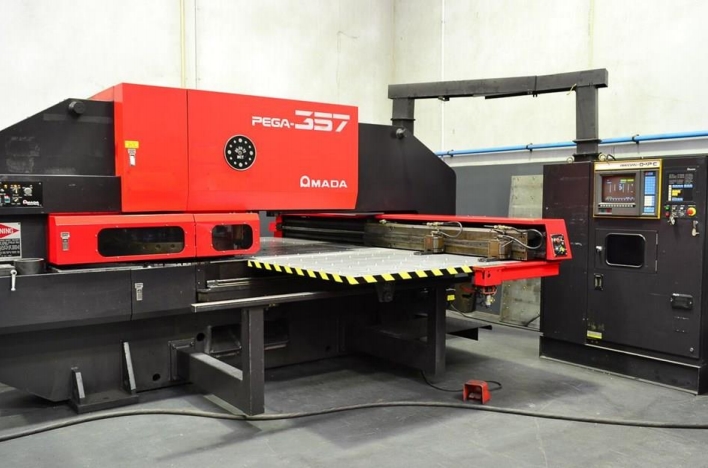

| Make | AMADA |
| Model | PEGA 357 |
| Capacity | 30 TON |
| STATION | 54 WITH 2 AUTO INDEX |
| Workable Max. Sheet Size | 2500 MM X 1250 MM |
| Maximum Material Thickness | 3 mm Mild Steel |
| Maximum Material Thickness | 2 mm Staineless Steel |
| Maximum Material Thickness | 4 mm Aluminium |
| Weight | 12 TON APPROX |
Turret punching involves pushing a punch through a piece of metal to create a hole. There may be a die on the other side of the hole to contain the metal. The turret punch can make holes in a variety of different diameters and can make about as many holes in a sheet of metal as you may need for your fabrication.
Turrent Punching Machine Specifications
| Machine Specifications | Details |
|---|---|
| Make | YAWEI NISSHINBO |
| Model | HPH 3048 |
| Capacity | 30 TON |
| STATION | 30 WITH 2 AUTO INDEX |
| Workable Max.Sheet Size | 3000 MM x 1250 MM |
| Maximum Material Thickness | 3 MM Mild Steel |
| Maximum Material Thickness | 2 MM Staineless Steel |
| Maximum Material Thickness | 4 MM Aluminium |
| Maximum Material Thickness | 5 mm Brass |
| Weight | 12 TON APPROX |
Gallary
