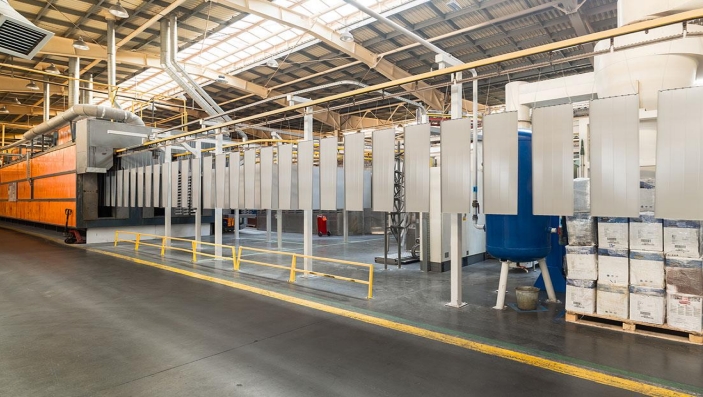

Powder coating revolutionized architecture, furniture manufacturing, and outdoor metal maintenance. This versatile coating protects metals and other materials from corrosion, dents, and scratches while elevating the surface finish. The powder-coat process entails the application of electrostatically charged particles onto the surface of the substrate.
In a typical powder-coating system, a feeder unit delivers the powder to an electrostatic gun.
The feeder unit also controls the flow of powder to the gun. The gun emits the powder in the form of a diffused cloud. When combined with an electrical field charge provided by a low-amperage power unit, the charged particles seek out and adhere to the surface of the substrate.
| PLANT Specifications | L X W X H |
|---|---|

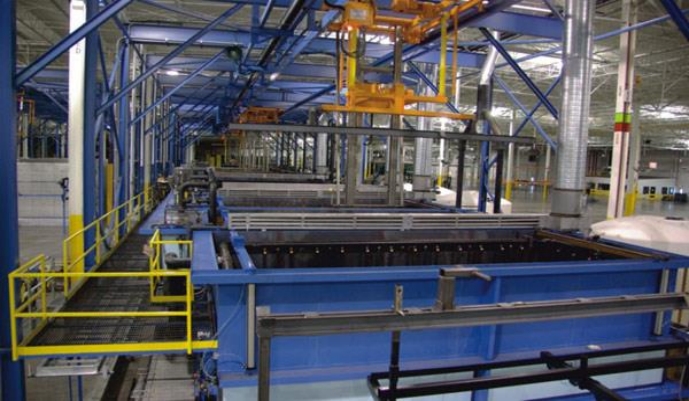

| Pre-Treatment Tank | 3500 x 1250 x 2000 mm |

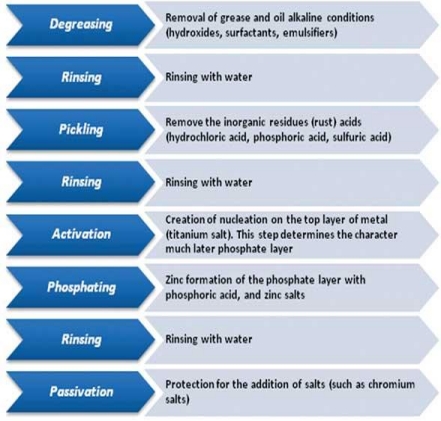

| Pre-Treatment Type | 7 Tanks Dip Type |
| Tank Capacity | Approx. 10000 Ltrs.each |
| Water Drying Type | Enclosed Drying Booth |
| Coating Booth Size | 4000 X 1250 x 2500 mm |
| Recovery System | Double Cyclone |
| Powder Curing Oven Size | 16000 x 1500 x 2500 mm |
| Heat Source | Gas Fired |
| Maximum Batch Load | 1000 Kg. |
| Maximum Bacth Load | 1000 Kg. |
| Oven Working Temp. | 180-200°C |
| Motor Rating | 5 HP X 2 Nos |
| Compressor | 20 HP |
